Cast Iron Radiator Windsor Height 99 cm (39.0 in.)

Windsor is a classic cast iron radiator that captures the essence of traditional French design. With its beautifully flowing, intricate decoration from top to bottom, Windsor is especially well-suited for period interiors.

By combining two Leg Sections with any number of Middle Sections, you can easily assemble a radiator in your desired length (up to 1500 mm / 59.1 in. pre-assembled, which corresponds to 21 sections). Each section is 70 mm (2.8 in.) wide. Add valves and other accessories for a personal touch. As for finish, the radiators can be ordered primed, in various alloys, or painted in any color (provide RAL code when ordering).

Da die Heizkörper nach Ihren Wünschen speziell im Vereinigten Königreich gefertigt werden, können wir leider kein Rückgaberecht anbieten. Here we have gathered all the information you need before your cast iron radiator order.

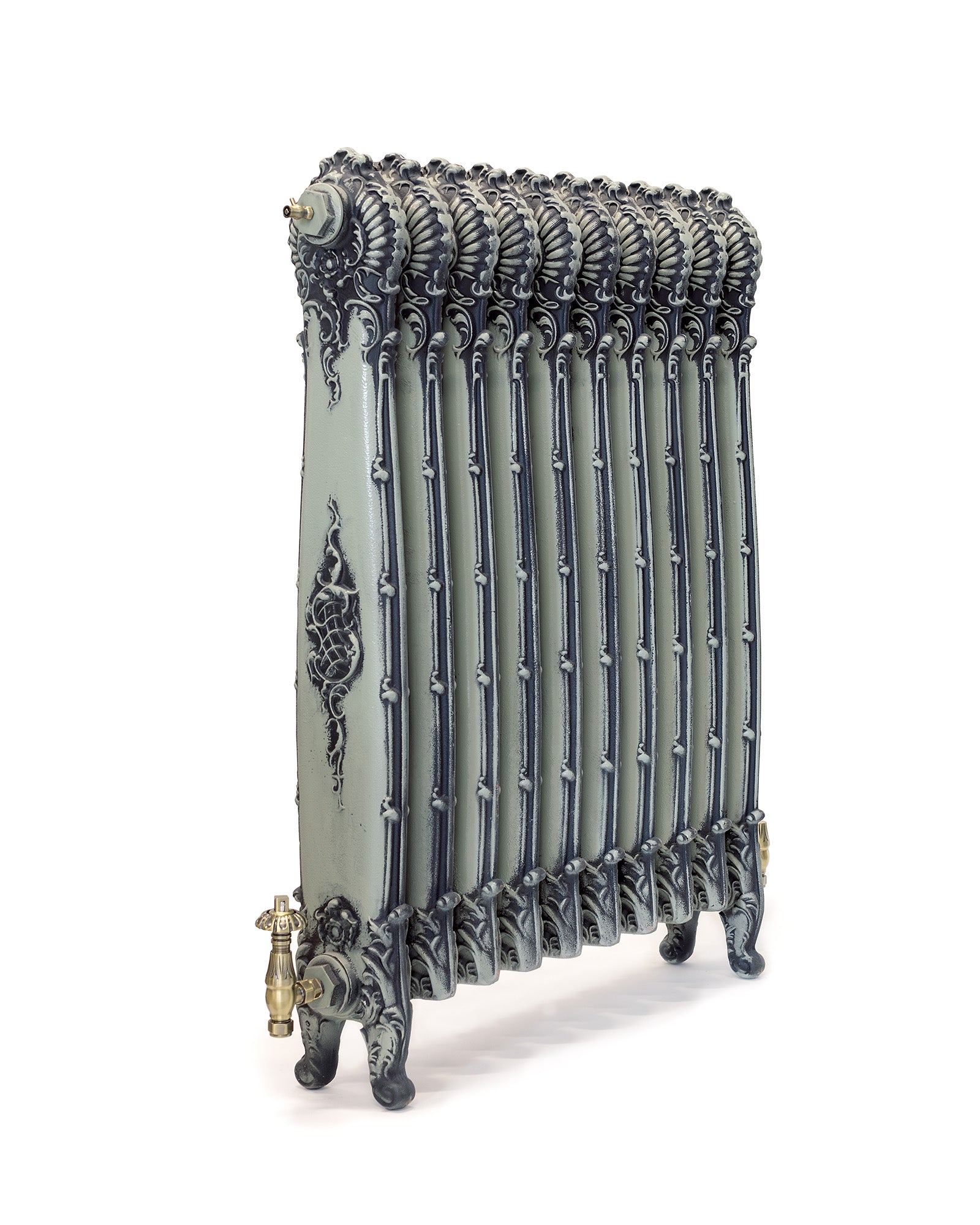

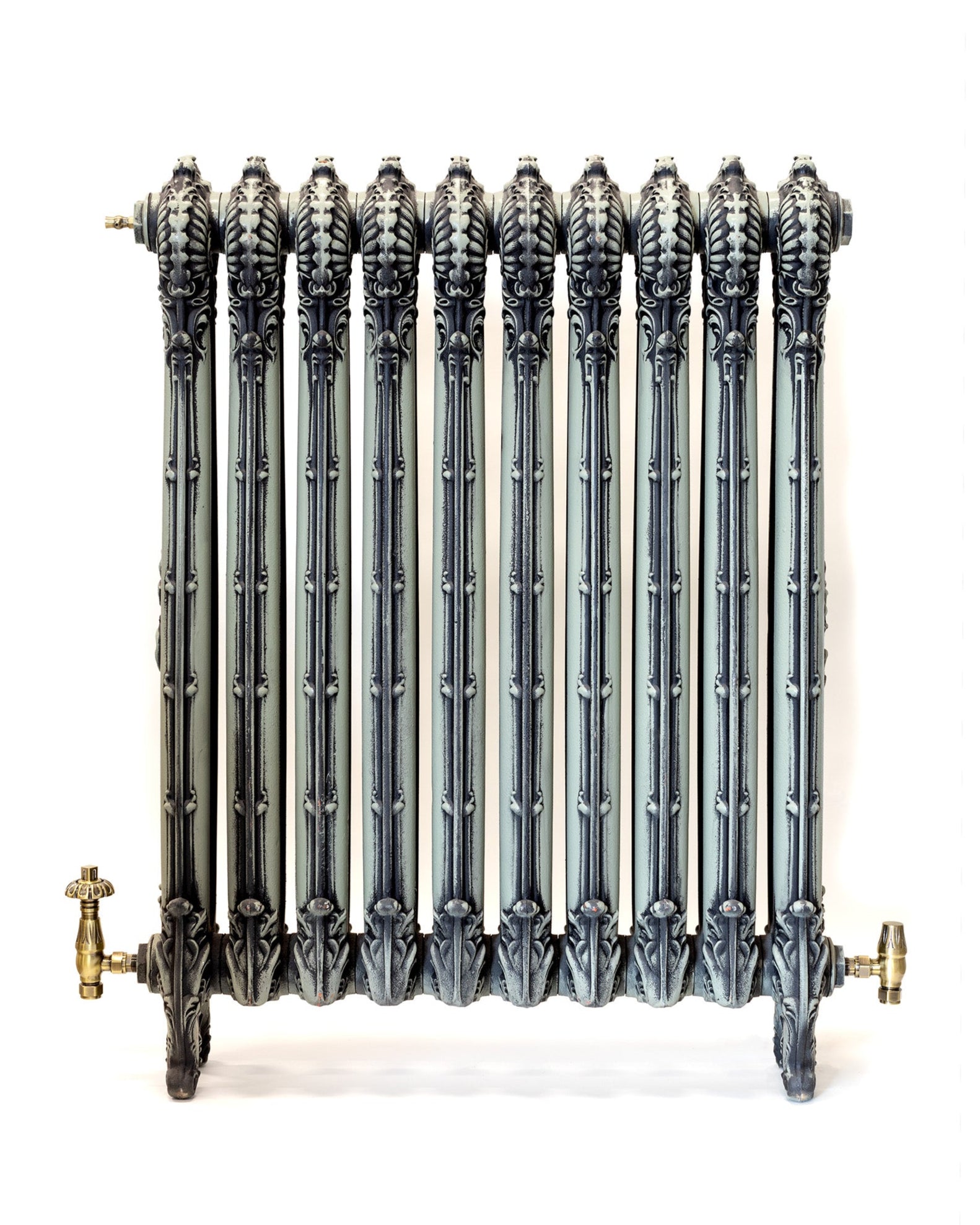

The price example is based on the combination shown in the picture.
Model: Windsor
Height: 99 cm (39.0 in.)
Finish: Aged French Grey
Number of Sections: 2 Leg Sections and 8 Middle Sections
Valve: Thermostatic Radiator Valve – Chelsea in bronze, bronze air vent.

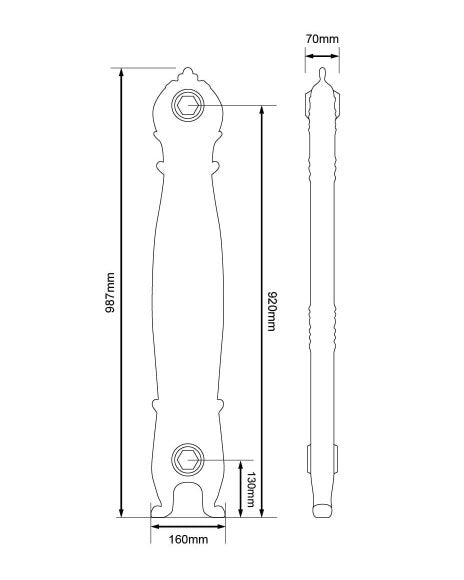

Dimensions & Weight
Leg Section Height: 987 mm (38.9 in.)
Middle Section Height: 900 mm (35.4 in.)
Section Length: 70 mm (2.8 in.)
Section Depth: 160 mm (6.3 in.)
Bottom Inlet to Floor: 130 mm (5.1 in.)
Top Inlet to Floor: 920 mm (36.2 in.)
Pipe Centres to Skirt: 80 mm (3.1 in.)
Connections: ½" (15 mm) BSP
Heat Output (ΔT 50˚C): 125 W / 426 BTU per section
Heat Output (ΔT 30˚C): 64 W / 218 BTU per section
Weight Leg Section: 13.9 kg (30.6 lbs) empty / 16.9 kg (37.3 lbs) filled
Weight Middle Section: 11.9 kg (26.2 lbs) empty / 14.9 kg (32.9 lbs) filled
Volume per section: 3.0 liters (0.79 gal)

Warranty: 10-year factory warranty on the cast iron body and 5 years on other components.
Certification: CE-marked, manufactured in the United Kingdom.
Pressure test: The radiator is tested for a pressure of up to 5 bar, and the radiator valve is tested up to 14 bar.
